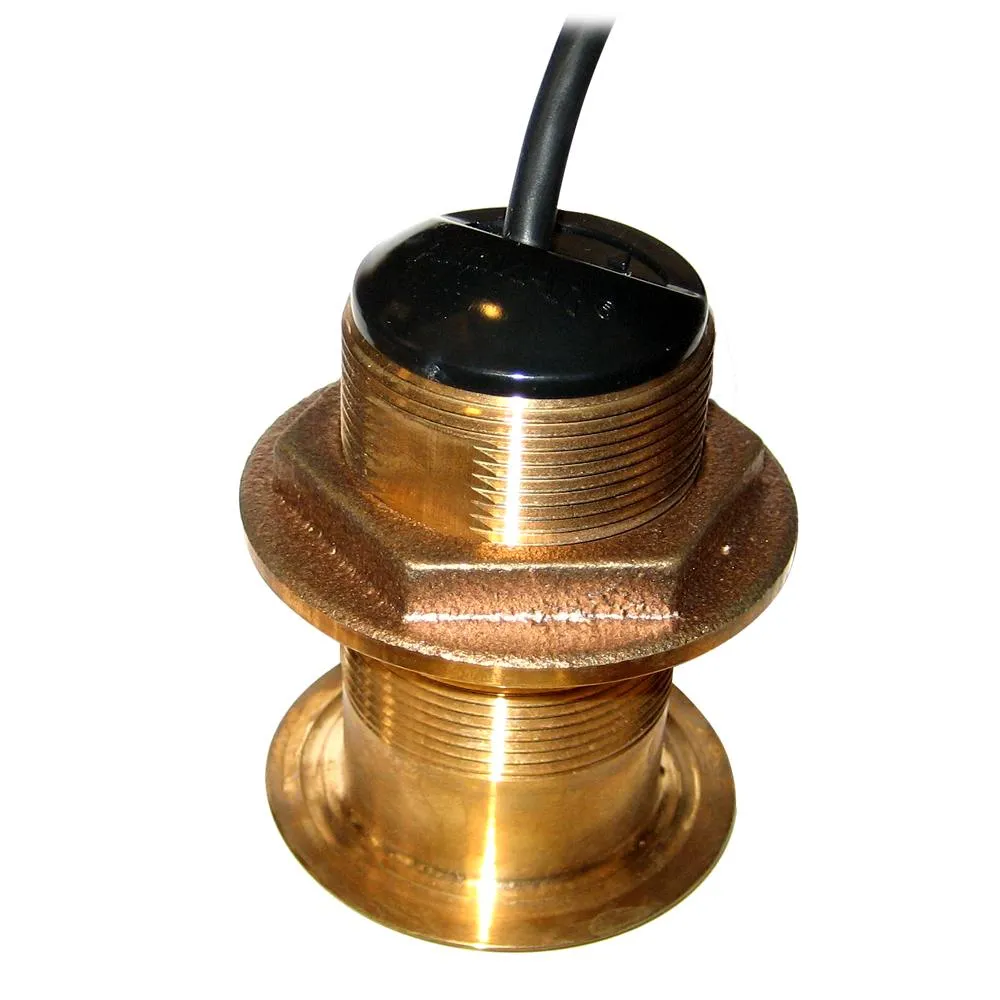

Low Profile Bronze Depth Only
Depth only low profile transducer (B117)
Compatible with the following Echo Sounders:
- DSM250 and DSM300
- SL Series: SL755RC, SL760RC , SL1250, and SL1250RC
- hsb2 Plus Series: L755RC, L760, L760RC, L1250,and L1250RC
- hsb2 HDFI Series: DSM250, L770D, L770DRC, L1260D, and L1260DRC
Compatible hull material: wood and fiberglass
Max Power: 600 W
Frequency: 200/50 kHz
Cable: 30ft (10m) cable with connector
**Requires E66066 adapter cable to work with a,c,e,eS Series built in sonar models.**
Specifications:
- Mounting Style: Thru-Hull
- Imagining: Standard
- Chirp: No
- Cable Length (Feet): 30'
- Temperature: No
- Speed Included: No
- Box Dimensions: 5"H x 7"W x 10"L WT: 3.9 lbs
- UPC: 023193660141
