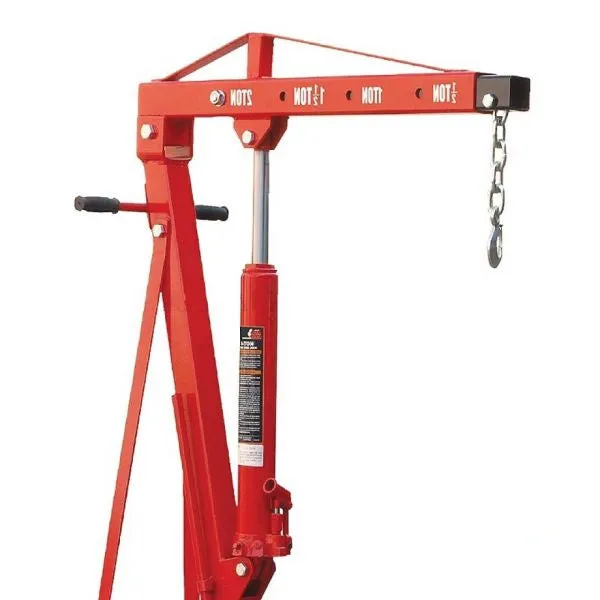

Bigred Garage Jack Engine Hoist Capacity 2 ton -  Red

This product is specially designed to raise, lower and transport engines, differentials, transmissions, and other heavy loads with minimal effort. This product is tested for reliability and safety.

•   The wheel construction for more stability and easy rolling.

•   Adjustable lifting arm.

•   Heavy gauge tubular steel construction.

•   Folds in half for easy storage.

Common Problems And Solutions

If you use and maintain your equipment properly, it will give you many years of service. Follow the maintenance instructions carefully to keep your equipment in good working condition. Never perform any maintenance on the equipment while it is under a load.

Cleaning

If the moving parts of the equipment are obstructed, use cleaning solvent or another good degreaser to clean the equipment. Remove any existing rust, with a penetrating lubricant.

Lubrication

This equipment will not operate safely without proper lubrication. Using the equipment without proper lubrication will result in poor performance and damage to the equipment. Some parts in this equipment are not self-lubricating inspect the equipment before use and lubricate when necessary.

After cleaning, lubricate the equipment using light penetrating oil, lubricating spray.

Use a good lubricant on all moving parts.

For light duty use lubrication once a month.

For heavy and constant use lubrication recommended every week.

NEVER USE SANDPAPER OR ABRASIVE MATERIAL ON THESE SURFACES!

With release valve closed, an upward stroke of the long ram handle draws oil from the reservoir tank into the plunger cavity. Hydraulic pressure holds the valve closed, which keeps the oil in the plunger cavity. A downward stroke of the long ram handle releases oil into the cylinder, which forces the ram out. This raises the hydraulic ram. When the ram reaches maximum extension, oil is bypassed back into the reservoir to prevent an over extended ram stroke and possible damage to the long ram. Opening the release valve allows oil to flow back into reservoir. This releases hydraulic pressure on the ram, which results in lowering the hydraulic ram.

Storing the Jack

1. Lower the Lifting Arm.

2. Place the handle in the upright position.

3. Store in a dry location, recommended indoors.

Note:

If the crane is stored outdoors, be sure to lubricate all parts before and after use to ensure the crane stays in good working condition.
