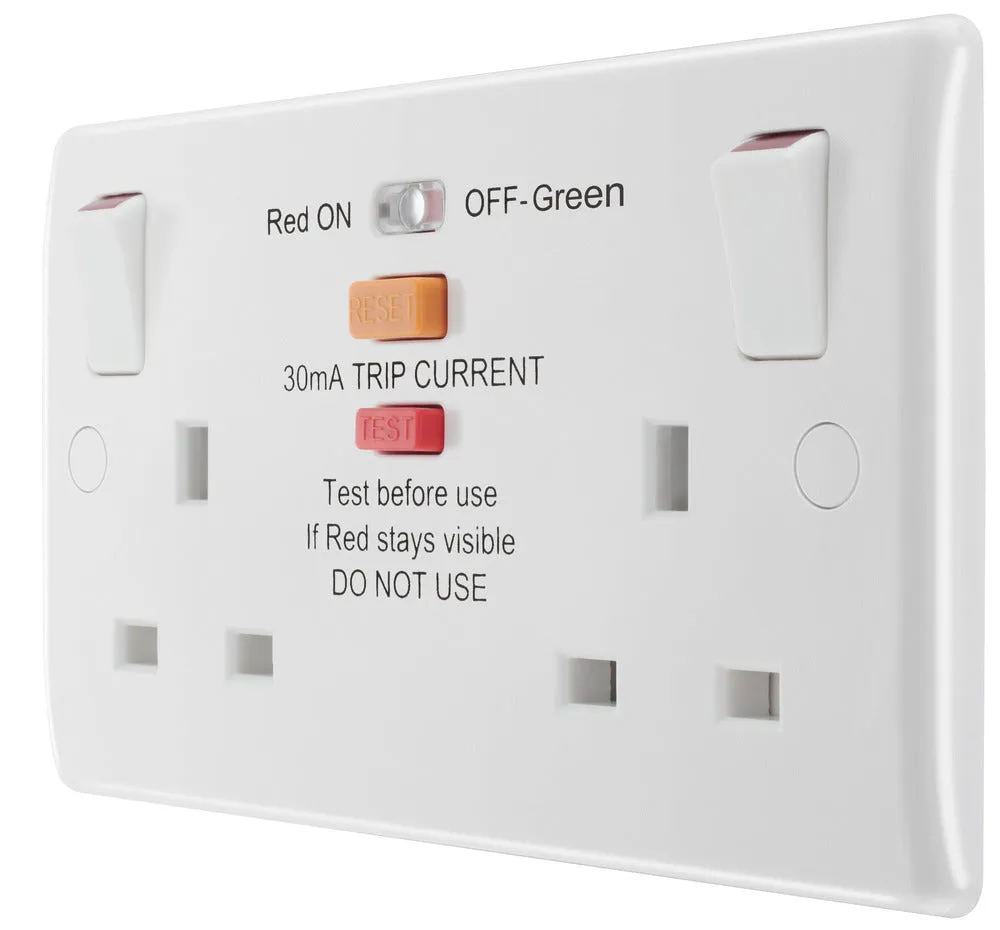

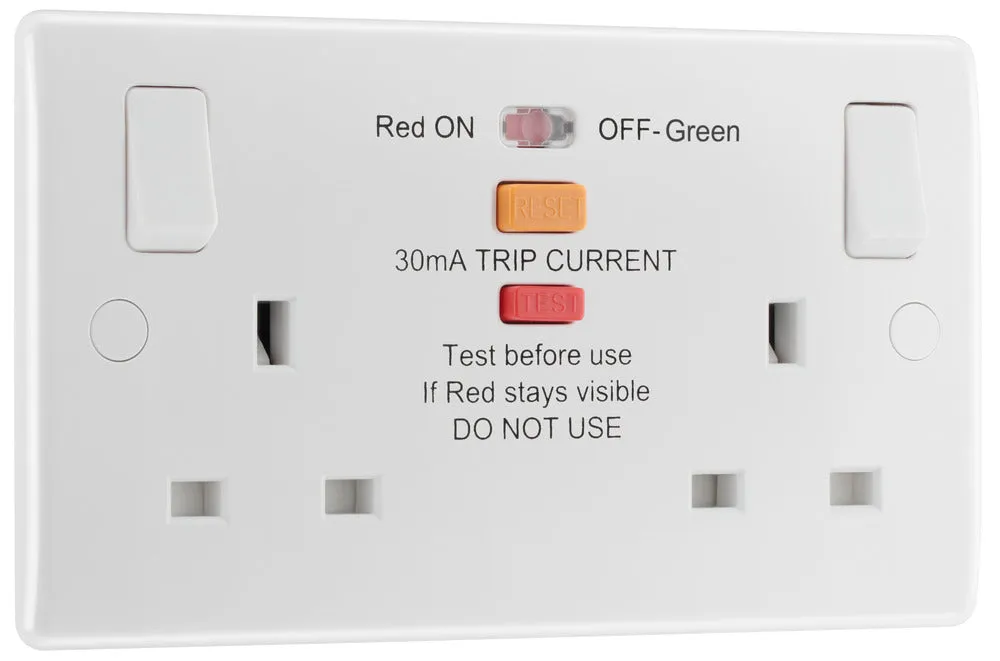

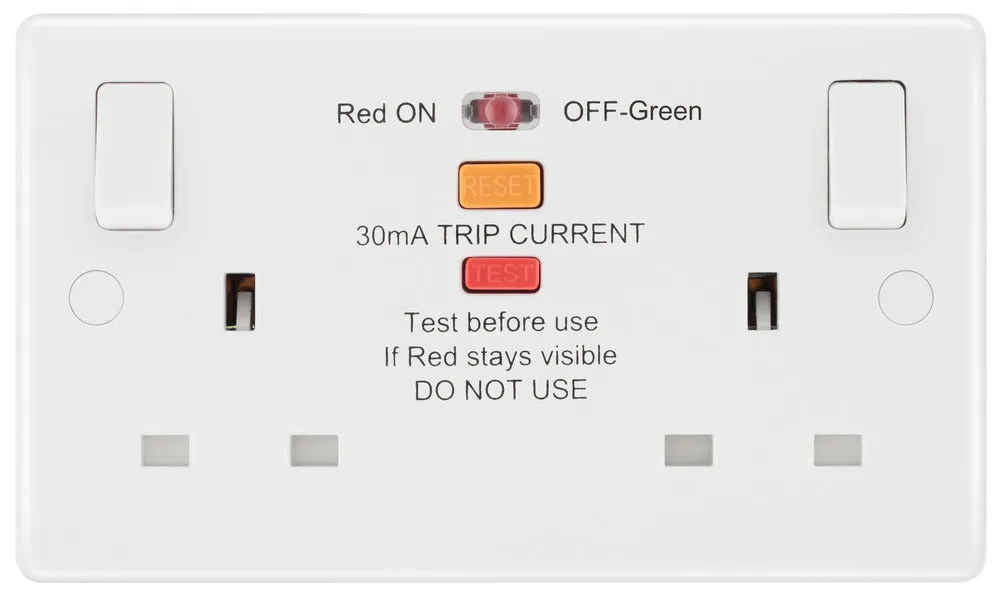

BG 822ARCD White Round Edge Type A RCD Protection Double Switch 13A
WHITE MOULDED wiring accessories available in a range of Round Edge finishes
- Flush power LED and inlaid red rocker indicator
- Screw covers for sleek appearance
- Modern rounded profile

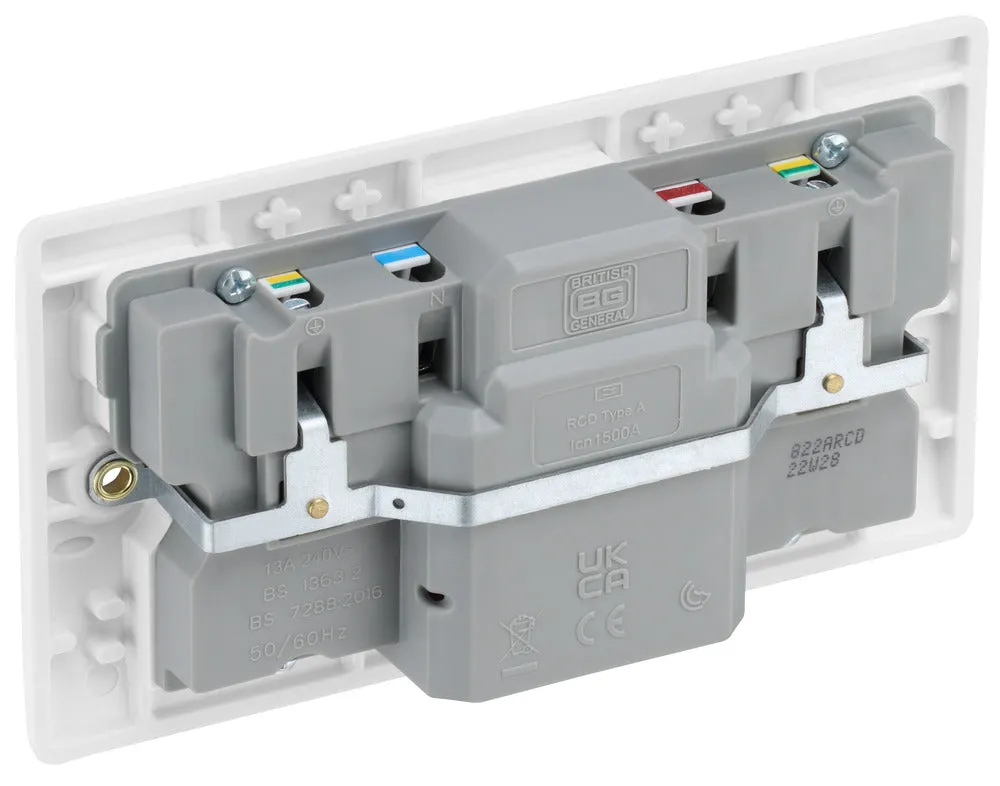

- Angled in-line colour-coded captive terminals
- Twin Earth
White Moulded is available in two stocked finishes
This item is 13A switched socket, 2 gang with Type A RCD
- Maximum load 3120 watts 240V AC
- 30 mA trip speed 40 ms
- Latching type
- Terminal capacity 3 x 2.5mm², 2 x 4.0mm² & 1 x 6.0mm²
- Manufactured to BS 7288:1990
- 10mm Spacer provded for shallow boxes
- Minimum mounting box depth 35mm
